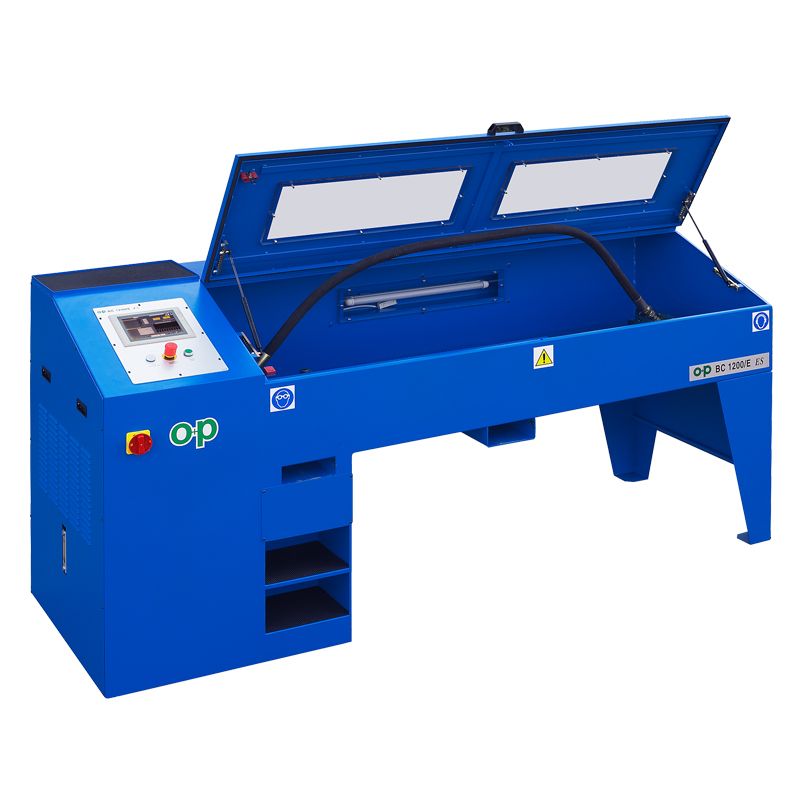

Test bench up to 1200 bars, provided with manual control and hydraulic multiplier. Not suitable for burst tests.
Product specifications could be modified without prior notice.
STATIC PRESSURE | 1200 bar (17400 psi) |
IMPULSE PRESSURE | 1200 bar (17400 psi) |
MIN. STARTING PRESSURE | 100 bar (1450 psi) |
PRESSURE CONTROL | automatic |
TEST | automatic |
TYPE OF DRIVE | hydraulic intensifier |
TEST LIQUID | OIL |
N. MANIFOLDS | 2 |
N. MANIFOLD CONNECTIONS | N.6 connessioni rapide speciali - N.2 1/4'' BSP |
LIQUID FILLING | automatic |
FILLING FLOW | 17 Lt/min |
PRESSURE DISCHARGE | automatic |
DOOR MECHANIC SAFETY DEVICE | automatic |
DOOR ELECTRIC SAFETY DEVICE | automatic |
STANDARD CHAMBER DIMENSIONS | 2000x830 mm (78.740''x32.677'') |
BENCH DIMENSIONS | 2500x875x1200 mm (98.425''x34.449''x47.244'') |
TANK | 110 Lt |
STANDARD VOLTAGE | 400V 50 HZ 3PH |
WEIGHT WITHOUT OIL | 600 KG (1323 Lbs) |
INTERNAL LIGHTNING | incl. |
SHOCK-PROOF CHECKING WINDOWS | incl. |
SUCTION FILTER | incl. |
DELIVERY FILTER | incl. |
OIL PROTECTING MESH | incl. |
SHELVES FOR TOOLS | incl. |
SLIDING MANIFOLDS | incl. |
AUTOMATIC CONTROL WITH PLC | incl. |
PC CONNECTION | OPTIONAL |
USB CONNECTION CONFIGURATION | incl. |
SPECIAL VOLTAGE | OPTIONAL |
ADAPTER | 3/8''-1/2''-3/4''-1''-1''1/4-1''1/2-2'' |
FIXED VOLUME MULTIPLIER | Oil volume 0.325 lt |
