BC1200E / BC1200E

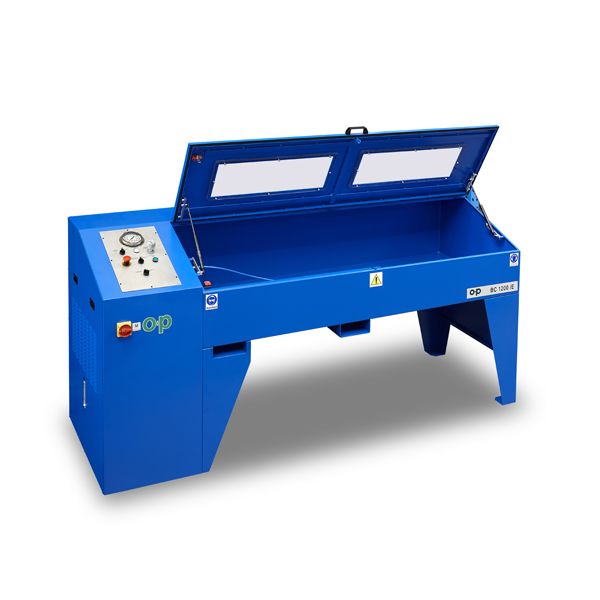

Test bench up to 1200 bars, provided with manual control and hydraulic multiplier. Not suitable for burst tests.

Product specifications could be modified without prior notice.

BC1200E


STATIC PRESSURE 1200 bar (17400 psi)
IMPULSE PRESSURE 1200 bar (17400 psi)
MIN. STARTING PRESSURE 100 bar (1450 psi)
PRESSURE CONTROL manual
TEST manual
TYPE OF DRIVE hydraulic intensifier
TEST LIQUID OIL
N. MANIFOLDS 2
N. MANIFOLD CONNECTIONS N.1 special quick coupling n.2 1/4
LIQUID FILLING manual
FILLING FLOW 17 Lt/min
PRESSURE DISCHARGE manual
PRESSURE GAUGE analog
DOOR MECHANIC SAFETY DEVICE automatic
DOOR ELECTRIC SAFETY DEVICE automatic
STANDARD CHAMBER DIMENSIONS 2000x830 mm (78.740''x32.677'')
BENCH DIMENSIONS 2500x875x1200 mm (98.425''x34.449''x47.244'')
TANK 110 Lt
STANDARD VOLTAGE 400V 50 HZ 3PH
WEIGHT WITHOUT OIL 460 KG (1014 Lbs)
SUCTION FILTER incl.
DELIVERY FILTER incl.
SPECIAL VOLTAGE OPTIONAL
ADAPTER OPTIONAL 3/8''-1/2''-3/4''-1''-1''1/4-1''1/2-2''
FIXED VOLUME MULTIPLIER oil volume 0.325 lt
