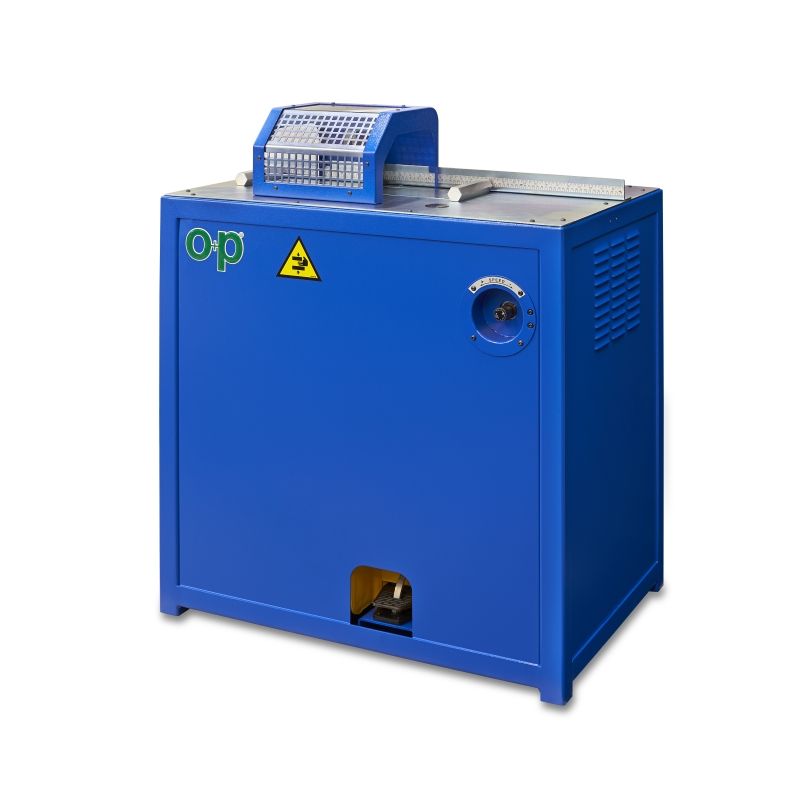

TF3 PI / TAGLTF3DPI

TF3PI is ideal for cutting flexible hydraulic hoses up to 2" six spirals.

Main Features

  • cutting speed adjustment device;
  • suction connection;
  • Ø 400 mm serrated blade;
  • pedal-equipped pneumatic control;
  • recessed blade and guards for the operator's safety.

Product specifications could be modified without prior notice.

TF3 PI


6 SPIRALS 2''
4 SPIRALS 2'' 1/2
2 BRAIDS 3''
MAX Diam. 100 mm (3.937'')
REVOLUTIONS/MINUTE 2900
BLADE Diam. 400 mm (15.748'')
STANDARD VOLTAGE 400V 50HZ 3PH
DIMENSIONS L x W x H 1025x700x1150 mm (40.354''x27.559''x45.276'')
WEIGHT 240 KG (530 Lbs)
MOTOR POWER 5.5 Kw (7.5 Hp) A=10,14
PNEUMATIC INPUT MAX 7 BAR (100 psi)
SAFETY PROTECTION incl.
SUCTION CONNECTION incl.
MEASURING HOSE HOLDER OPTIONAL
CENTRING DEVICE + METER COUNTER OPTIONAL
STROKE COUNTER OPTIONAL
SPECIAL VOLTAGE OPTIONAL
