TF1 ECO / TAGLTF1D/E

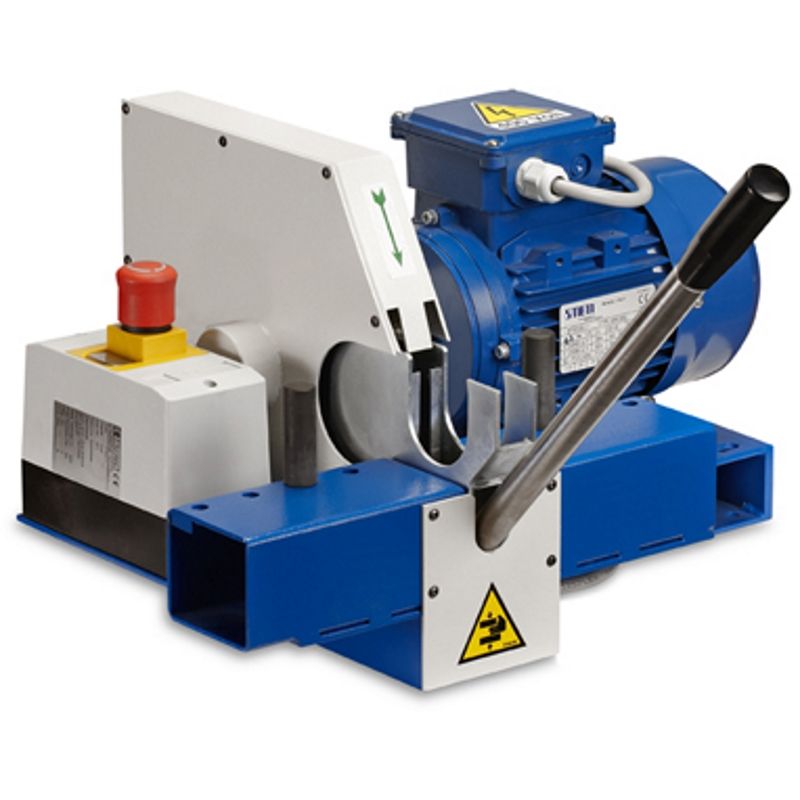

TF1 ECO is an inexpensive and compact cutting machine, ideal for cutting flexible hydraulic hoses up to 1" four spirals.
Main Features
- manually operated;
- recessed blade and guards for the operator's safety.
Product specifications could be modified without prior notice.
| 4 SPIRALS | 1'' |
| 2 BRAIDS | 1'' |
| MAX. Diam. | 45 mm (1.771'') |
| REVOLUTIONS/MINUTE | 2900 |
| BLADE Diam. | 250 mm (9.843'') |
| STANDARD VOLTAGE | 400V 3PH 50HZ |
| DIMENSIONS L x W x H | 516x594x354 mm (20.315''x23.386''x13.937'') |
| WEIGHT | 26,5 Kg (58 lbs) |
| MOTOR POWER | 0.75 Kw (1 Hp) |
| SUCTION CONNECTION | OPTIONAL |
| 12V VOLTAGE | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
