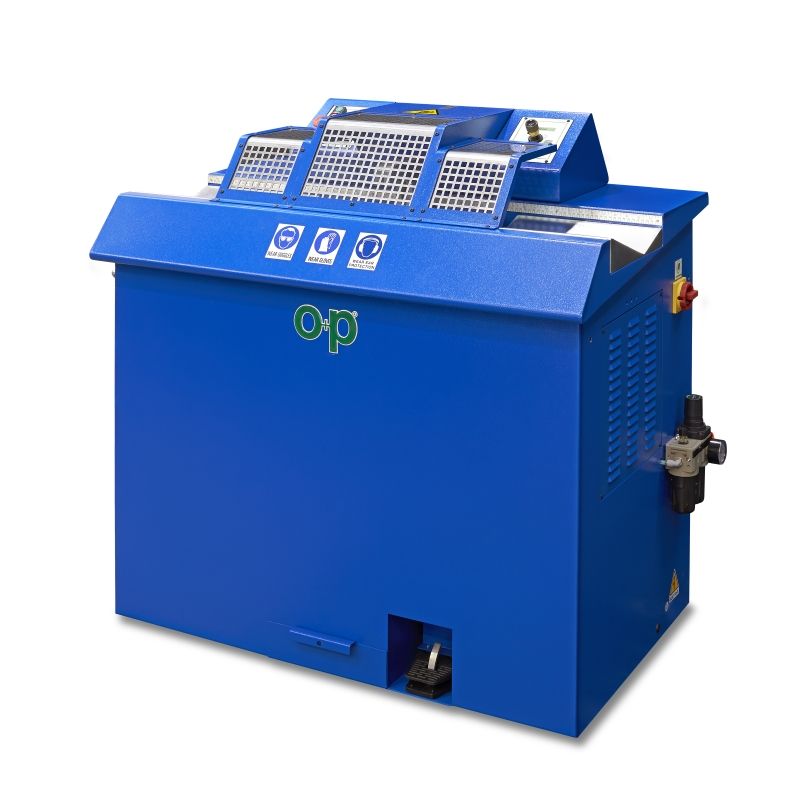

TF 4 / TAGLTF4D
TF4 is ideal for cutting flexible hydraulic hoses up to 2" six spirals.
Fume extractor and blowing kit upon request.
Main Features
- self braking motor (5,5 Kw);
- Ø 400 mm serrated blade;
- cutting speed adjustment device;
- self-centring hose support;
- pedal-equipped pneumatic control;
- recessed blade and guards for the operator's safety.
Product specifications could be modified without prior notice.
| 6 SPIRALS | 2'' |
| 4 SPIRALS | 2''1/2 |
| 2 BRAIDS | 3'' |
| INDUSTRIAL HOSE | 3'' |
| MAXIMUM CUTTING Diam. | 100 mm (3.937'') |
| REVOLUTIONS/MINUTE | 2900 |
| PNEUMATIC INPUT | MAX 7 BAR (100 psi) |
| BLADE Diam. | 400 mm (15.748'') |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| DIMENSIONS L x W x H | 1160x740x1130 mm (45.669''x29.134''x44.488'') |
| WEIGHT | 375 KG (827 lbs) |
| SELF BRAKING MOTOR POWER | 5.5 Kw (7.5 Hp) A=9,85 |
| SAFETY PROTECTION | incl. |
| SUCTION CONNECTION | incl. |
| STROKE COUNTER | incl. |
| MEASURING HOSE HOLDER | OPTIONAL |
| CENTRING DEVICE + METER COUNTER | OPTIONAL |
| FUME EXTRACTOR | OPTIONAL |
| BLOWING KIT | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
