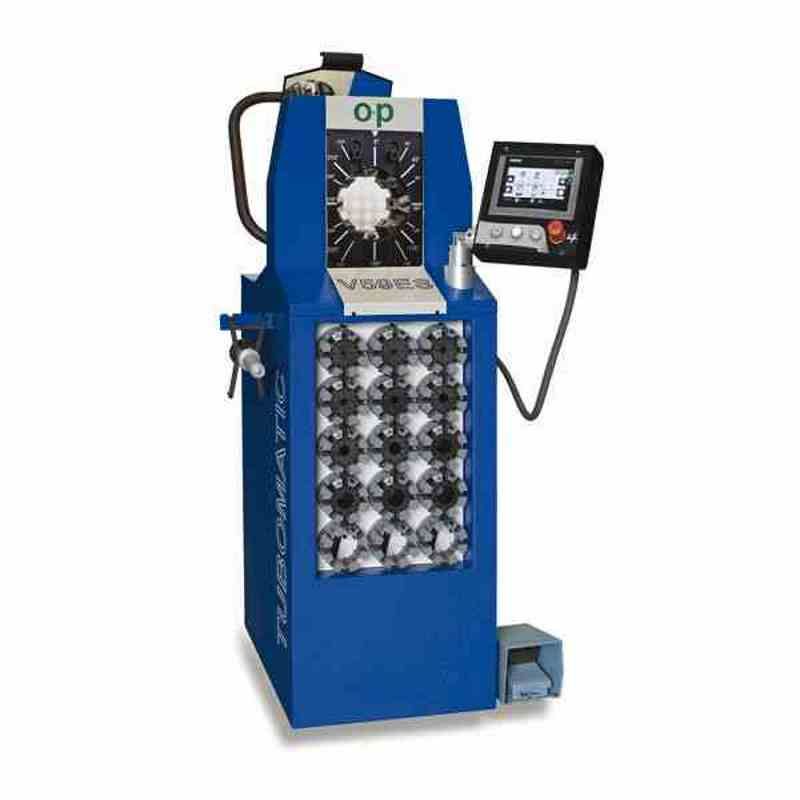

TUBOMATIC V59 ES / TUBV59ES
Tubomatic V59 ES volume crimping machine is ideal for crimping hydraulic hoses up to 1" six spirals and 1"1/4 four spirals
Main Features
- ES4 Siemens PLC control with 7'' color touch-screen display;
- self lubricating moving components;
- silent pump;
- 6 o'clock fixed position" of the die for greater stability of the hose during crimping;
- particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
- back limit switch;
- protractor for orientation fittings;
- hydraulic power pack included;
Product specifications could be modified without prior notice.
| CRIMPING FORCE | 140 TON (155 US TONS) |
| 6 SPIRALS 2 PIECES | 1'' |
| 4 SP 2 PIECES | 1''1/4 |
| 2 BRAIDS 2 PIECES WITH SPECIAL DIES | 1''1/2 |
| MAX Diam. | 67 mm* (2.638'') |
| CRIMPING/HOUR | 3900 |
| CLOSING SPEED | 11,6 mm/sec (0.457''/sec) |
| CRIMPING SPEED | 5,5 mm/sec (0.216''/sec) |
| OPENING SPEED | 11,6 mm/sec (0.457''/sec) |
| DIE OPENING | Ø + 50 mm (Ø + 1.970'') |
| STANDARD VOLTAGE | 375V-420V 50HZ 3PH |
| MOTOR POWER | 5,5 Kw (7.5 Hp) A=10,64 |
| DIMENSIONS L x W x H | 660x720x1490 mm (25.984''x28.346''x58.661'') |
| WEIGHT WITHOUT OIL | 544 Kg (1199 Lbs) |
| OIL | 70 lt |
| BACK LIMIT SWITCH | incl. |
| ELECTRONIC CONTROL WITH TOUCH SCREEN | incl. |
| PROTRACTOR FOR ORIENTATION FITTINGS | incl. |
| SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE | incl. |
| PRESSURE CONTROL SYSTEM | OPTIONAL |
| SPEED CONTROL SYSTEM | OPTIONAL |
| QUALITY CHECK | OPTIONAL |
| WEBCAM | OPTIONAL |
| BARCODE | OPTIONAL |
| FRONT AND REAR PROTECTION NET WITH ACTIVATION LIMIT SWITCH | OPTIONAL |
| CONNECTION FROM ES4 TO PC | OPTIONAL |
| DISPENSER + QUICK CHANGE | OPTIONAL |
| MARKING DIES | OPTIONAL |
| SPECIAL DIES | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
| MULTISTEP | OPTIONAL |
| ELECTRIC PEDAL | OPTIONAL |
| MIRROR | OPTIONAL |
| TOOL-HOLDER SUPPORT | OPTIONAL |
