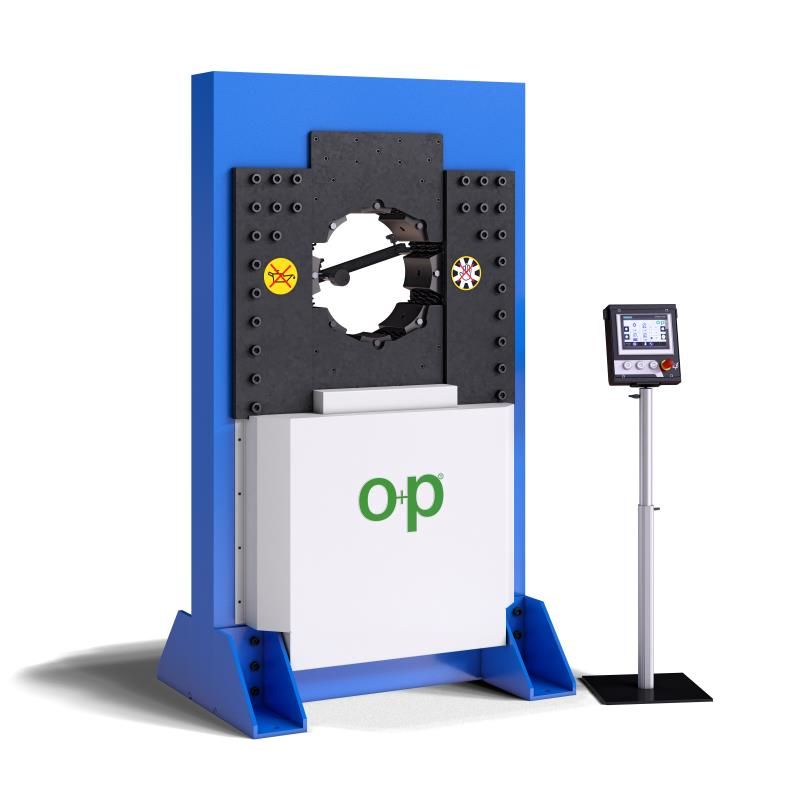

TUBOMATIC V340I ES / TUBV340IES - TUBV300IES

The crimping machine V340I ES is able to crimp industrial hoses up to 10'' with big flanges.

Main Features

  • ES4 Siemens PLC control with 7'' color touch-screen display;
  • self lubricating moving components;
  • silent pump;
  • particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
  • back limit switch;
  • hydraulic power pack included;
  • mobile control board.

Product specifications could be modified without prior notice.

TUBOMATIC V340I ES


CRIMPING FORCE 830 TON (914 US TONS)
6 SPIRALS 2 PIECES 3''
INDUSTRIAL HOSE 10''
MAX. Diam. 350 mm (13.780'')
DIE OPENING Ø + 155 mm (Ø + 6.102'')
STANDARD VOLTAGE 375V-420V 50Hz 3ph
MOTOR POWER 11 Kw (15 Hp) A=20,76
DIMENSIONS L x W x H 1200x950x2080 mm (47.244''x37.402''x81.890'')
WEIGHT WITHOUT OIL 5235 Kg (11541 Lbs)
OIL 300 lt
HYDRAULIC POWER PACK SEPARATED FROM THE MACHINE incl.
HYDRAULIC POWER PACK DIMENSIONS L x W x H 925x669x1314 mm (36.417''x26.339''x51.732'')
HYDRAULIC POWER PACK WEIGHT 395 Kg (871 Lbs)
BACK LIMIT SWITCH incl.
ELECTRONIC CONTROL WITH TOUCH SCREEN incl.
SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE incl.
PRESSURE CONTROL SYSTEM OPTIONAL
SPEED CONTROL SYSTEM OPTIONAL
BARCODE OPTIONAL
WEBCAM OPTIONAL
FRONT AND REAR PROTECTION NET WITH ACTIVATION LIMIT SWITCH OPTIONAL
CONNECTION FROM ES4 TO PC OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
QUALITY CHECK OPTIONAL
MULTISTEP OPTIONAL
DISPENSER + QUICK CHANGE OPTIONAL
ELECTRIC PEDAL OPTIONAL
TOOL-HOLDER SUPPORT OPTIONAL
