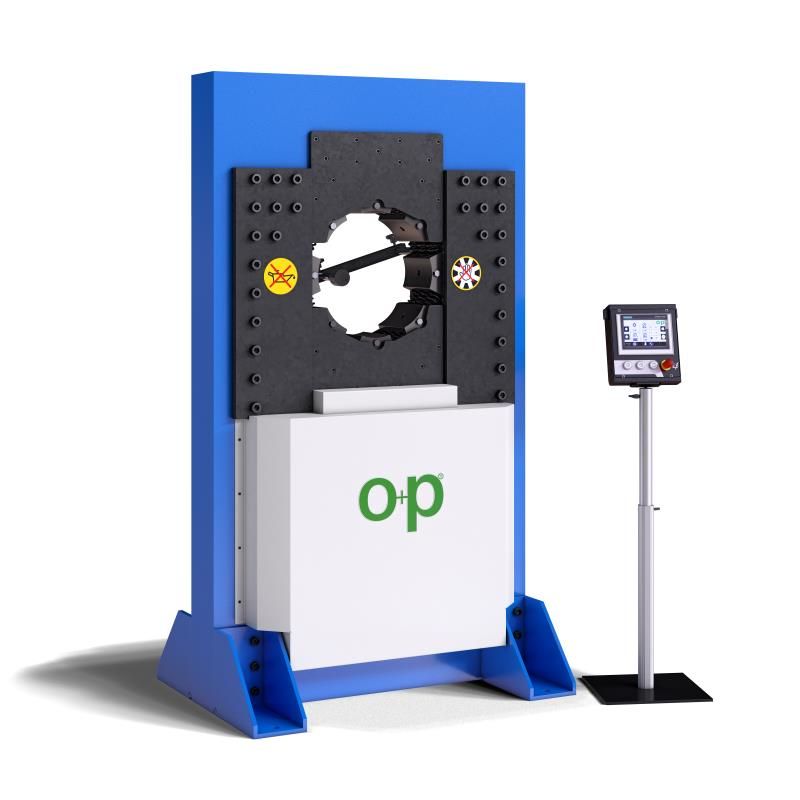

TUBOMATIC V300I ES / TUBV340IES - TUBV300IES
The crimping machine Tubomatic V340I ES and V300I ES are ideal for crimping industrial hoses up to 10" with big anges.
Main Features
- ES4 Siemens PLC control with 7'' color touch-screen display;
- self lubricating moving components;
- silent pump;
- particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
- back limit switch;
- hydraulic power pack included;
- mobile control board.
Product specifications could be modified without prior notice.
| CRIMPING FORCE | 660 TON (725 US TONS) |
| 6 SPIRALS 2 PIECES | 3'' |
| INDUSTRIAL HOSE | 10'' |
| MAX Diam. | 350 mm* (13.780'') |
| DIE OPENING | Ø + 155 mm (Ø + 6.102'') |
| STANDARD VOLTAGE | 375V-420V 50HZ 3PH |
| CLOSING SPEED | 9 mm/sec (0.354''/sec) |
| CRIMPING SPEED | 1 mm/sec (0.039''/sec) |
| OPENING SPEED | 44 mm/sec (1.732''/sec |
| MOTOR POWER | 11 Kw (15 Hp) A=20,76 |
| DIMENSIONS L x W x H | 1530x1065x2550 mm (62.480''x 41.929''x 104.004'') |
| WEIGHT WITHOUT OIL | 7000 Kg (15432 Lbs) |
| OIL | 300 lt |
| HYDRAULIC POWER PACK SEPARATED FROM THE MACHINE | incl. |
| HYDRAULIC POWER PACK DIMENSIONS L x W x H | 1246x670x1270 mm (49.055''x 26.378''x 50'') |
| BACK LIMIT SWITCH | incl. |
| ELECTRONIC CONTROL WITH TOUCH SCREEN | incl. |
| PROTRACTOR FOR ORIENTATION FITTINGS | incl. |
| SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE | incl. |
| PRESSURE CONTROL SYSTEM | OPTIONAL |
| SPEED CONTROL SYSTEM | OPTIONAL |
| BARCODE | OPTIONAL |
| WEBCAM | OPTIONAL |
| FRONT AND REAR PROTECTION NET WITH ACTIVATION LIMIT SWITCH | OPTIONAL |
| CONNECTION FROM ES4 TO PC | OPTIONAL |
| MARKING DIES | OPTIONAL |
| SPECIAL DIES | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
| QUALITY CHECK | OPTIONAL |
| DISPENSER + QUICK CHANGE | OPTIONAL |
| MULTISTEP | OPTIONAL |
| ELECTRIC PEDAL | OPTIONAL |
| CRIMPING SPEED | OPTIONAL |
| TOOL-HOLDER SUPPORT | OPTIONAL |
