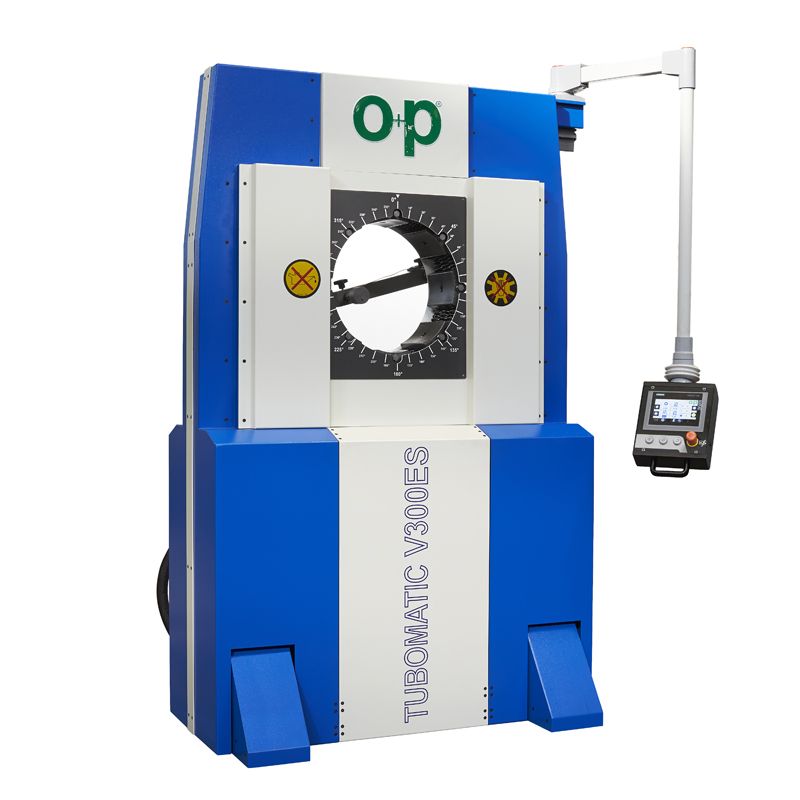

TUBOMATIC V300 ES / TUBV300ES

With a crimping force of 660 ton, Tubomatic V300 ES crimping machine is able to crimp industrial hoses up to 10'' with big flanges, but it can also be used for crimping insulators and rebar couplers that require a high crimping force.

Main Features

  • ES4 Siemens PLC control with 7'' color touch-screen display;
  • self lubricating moving components;
  • silent pump;
  • particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
  • back limit switch;
  • protractor for orientation fittings;
  • hydraulic power pack included;
  • mobile control board.

Product specifications could be modified without prior notice.

TUBOMATIC V300 ES


CRIMPING FORCE 660 TON (725 US TONS)
6 SPIRALS 2 PIECES 3''
INDUSTRIAL HOSE 10''
MAX Diam. 350 mm* (13.780'')
DIE OPENING Ø + 155 mm (Ø + 6.102'')
STANDARD VOLTAGE 375V-420V 50Hz 3ph
CLOSING SPEED 9 mm/sec (0.354''/sec)
CRIMPING SPEED 1 mm/sec (0.039''/sec)
OPENING SPEED 40 mm/sec (1.574''/sec)
MOTOR POWER 7,5 Kw (10 Hp) A=14,39
DIMENSIONS L x W x H 1530x995x2450 mm (60.236''x39.173''x96.456'')
WEIGHT WITHOUT OIL 6113 Kg (13476 Lbs)
OIL 300 lt
HYDRAULIC POWER PACK SEPARATED FROM THE MACHINE incl.
HYDRAULIC POWER PACK DIMENSIONS L x W x H 1223x680x1239 mm (49.150''x26.772''x49.780'')
BACK LIMIT SWITCH incl.
ELECTRONIC CONTROL WITH TOUCH SCREEN incl.
PROTRACTOR FOR ORIENTATION FITTINGS incl.
SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE incl.
PRESSURE CONTROL SYSTEM OPTIONAL
SPEED CONTROL SYSTEM OPTIONAL
BARCODE OPTIONAL
WEBCAM OPTIONAL
FRONT AND REAR PROTECTION NET WITH ACTIVATION LIMIT SWITCH OPTIONAL
CONNECTION FROM ES4 TO PC OPTIONAL
DISPENSER + QUICK CHANGE OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
QUALITY CHECK OPTIONAL
MULTISTEP OPTIONAL
ELECTRIC PEDAL OPTIONAL
CRIMPING SPEED OPTIONAL
TOOL-HOLDER SUPPORT OPTIONAL
