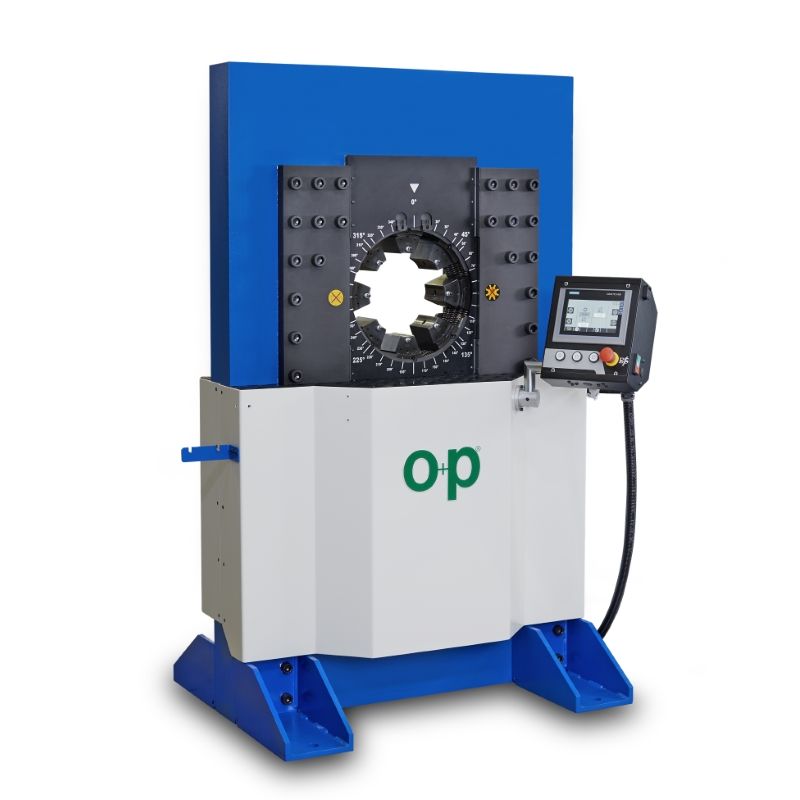

TUBOMATIC V250ES / TUBV250ES
Tubomatic V250 ES volume crimping machine is ideal for crimping hydraulic hoses up to 3" six spirals and industrial hose up to 10" (with special dies).
Main Features
- ES4 Siemens PLC control with 7'' color touch-screen display;
- self lubricating moving components;
- silent pump;
- particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
- back limit switch;
- protractor for orientation fittings;
- hydraulic power pack included.
Product specifications could be modified without prior notice.
| CRIMPING FORCE | 500 TON (551 US TONS) |
| 6 SPIRALS 2 PIECES | 3'' |
| INDUSTRIAL HOSE | 10'' |
| MAX. Diam. | 220 mm (8.661'') |
| CRIMPING / HOUR | 1000 |
| CLOSING SPEED | 14,3 mm/sec (0.563''/sec) |
| CRIMPING SPEED | 1,6 mm/sec (0.063''/sec) |
| OPENING SPEED | 21,7 mm/sec (0.854''/sec) |
| DIE OPENING | 125 mm ( 4.921'') |
| STANDARD VOLTAGE | 375V-420V 50HZ 3PH |
| MOTOR POWER | 11 Kw (15 Hp) A=20,76 |
| DIMENSIONS L x W x H | 1350x665x1825 mm (53.150''x26.181''x71.850'') |
| WEIGHT WITHOUT OIL | 2963 Kg (6532 Lbs) |
| OIL | 300 lt. |
| HYDRAULIC POWER PACK SEPARATED FROM THE MACHINE | incl. |
| HYDRAULIC POWER PACK DIMENSIONS L x W x H | 929x669x1314 mm (37.575''x26.339''x51.732'') |
| HYDRAULIC POWER PACK WEIGHT | 315 Kg (694 Lbs) |
| BACK LIMIT SWITCH | incl. |
| ELECTRONIC CONTROL WITH TOUCH SCREEN | incl. |
| PROTRACTOR FOR ORIENTATION FITTINGS | incl. |
| SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE | incl. |
| PRESSURE CONTROL SYSTEM | OPTIONAL |
| SPEED CONTROL SYSTEM | OPTIONAL |
| BARCODE | OPTIONAL |
| WEBCAM | OPTIONAL |
| FRONT AND REAR PROTECTION NET WITH ACTIVATION LIMIT SWITCH | OPTIONAL |
| CONNECTION FROM ES4 TO PC | OPTIONAL |
| MARKING DIES | OPTIONAL |
| SPECIAL DIES | OPTIONAL |
| QUALITY CHECK | OPTIONAL |
| DISPENSER + QUICK CHANGE | OPTIONAL |
| MULTISTEP | OPTIONAL |
| ELECTRIC PEDAL | OPTIONAL |
| CRIMPING SPEED | OPTIONAL |
| TOOL-HOLDER SUPPORT | OPTIONAL |
