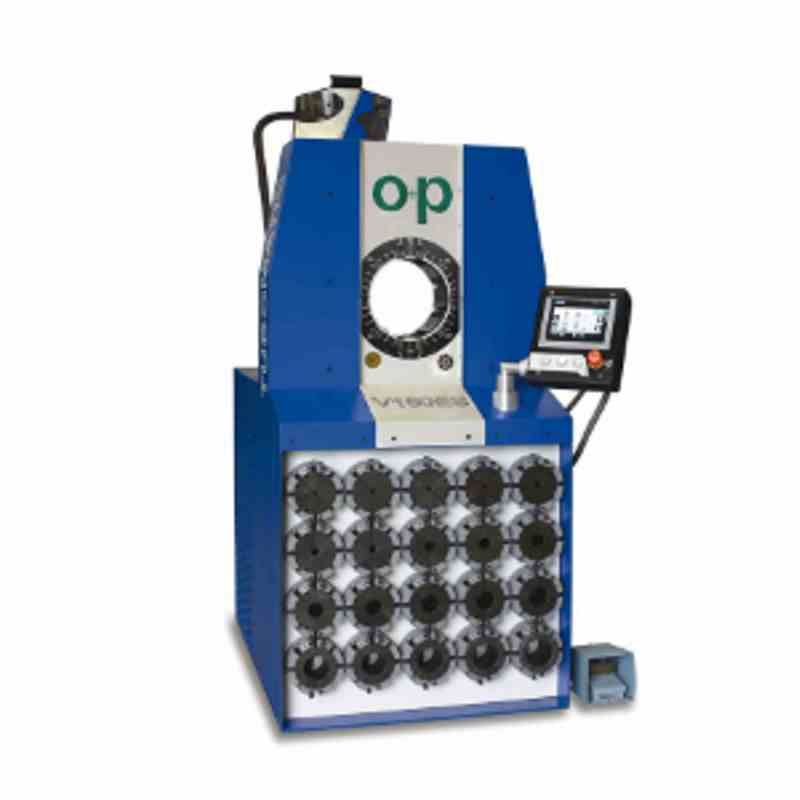

TUBOMATIC V160 ES / TUBV250ES

Tubomatic V160 ES volume crimping machine is ideal for crimping hydraulic hoses up to 3" six spirals and industrial hose up to 6" (with special dies).

Main Features

  • ES4 Siemens PLC control with 7'' color touch-screen display;
  • self lubricating moving components;
  • silent pump;
  • "6 o'clock fixed position" of the die for greater stability of the hose during crimping;
  • particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
  • back limit switch;
  • protractor for orientation fittings;
  • hydraulic power pack included.

Product specifications could be modified without prior notice.

TUBOMATIC V160 ES


CRIMPING FORCE 500 TON (551 US TONS)
6 SPIRALS 2 PIECES 3''
INDUSTRIAL HOSE 10''
MAX. Diam. 220 mm (8.661'')
CRIMPING / HOUR 1000
CLOSING SPEED 14,3 mm/sec (0.563''/sec)
CRIMPING SPEED 1,6 mm/sec (0.063''/sec)
OPENING SPEED 21,7 mm/sec (0.854''/sec)
DIE OPENING 125 mm ( 4.921'')
STANDARD VOLTAGE 375V-420V 50HZ 3PH
MOTOR POWER 11 Kw (15 Hp) A=20,76
DIMENSIONS L x W x H 1350x665x1825 mm (53.150''x26.181''x71.850'')
WEIGHT WITHOUT OIL 2963 Kg (6532 Lbs)
OIL 300 lt.
BACK LIMIT SWITCH incl.
ELECTRONIC CONTROL WITH TOUCH SCREEN incl.
CRIMPING SPEED OPTIONAL
PROTRACTOR FOR ORIENTATION FITTINGS incl.
MIRROR incl.
SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE incl.
PRESSURE CONTROL SYSTEM OPTIONAL
SPEED CONTROL SYSTEM OPTIONAL
BARCODE OPTIONAL
WEBCAM OPTIONAL
FRONT AND REAR PROTECTION NET WITH ACTIVATION LIMIT SWITCH OPTIONAL
CONNECTION FROM ES4 TO PC OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
QUALITY CHECK OPTIONAL
DISPENSER + QUICK CHANGE OPTIONAL
MULTISTEP OPTIONAL
ELECTRIC PEDAL OPTIONAL
TOOL-HOLDER SUPPORT OPTIONAL
