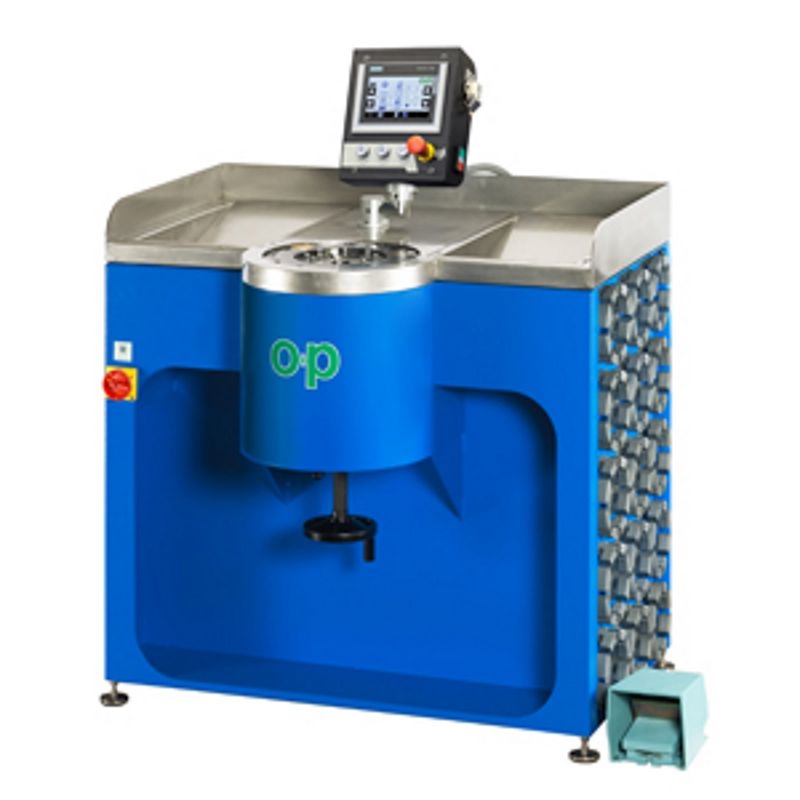

TUBOMATIC N120 ES / TUBN120ES - TUBN120EL
Tubomatic N120 ES is a particularly quick and high volume crimping machine, ideal for crimping nuts for flexible hose fittings: it can also be used for further applications such as high/low pressure cables and hoses up to a diameter of 120 mm.
Main Features
- ES4 Siemens PLC control with 7'' color touch-screen display;
- silent pump;
- vertical working position.
Product specifications could be modified without prior notice.
| CRIMPING FORCE | 80 TON (90 US TONS) |
| MAX Diam. | 120 mm* (4.724'') |
| CRIMPING / HOUR | 2500 |
| DIE OPENING | Ø + 24 mm (Ø + 0.946'') |
| STANDARD VOLTAGE | 375V-420V 50HZ 3PH |
| MOTOR POWER | 4 Kw (5.5 Hp) |
| DIMENSIONS L x D x H | 1080x810x1290 mm (42.552''x31.914''x50.826'') |
| WEIGHT WITHOUT OIL | 455 KG (1003 (Lbs) |
| OIL | 65 lt |
| MECHANICAL LIMIT SWITCH | incl. |
| ELECTRONIC CONTROL WITH TOUCH SCREEN | incl. |
| SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE | OPTIONAL |
| BACK ELECTRIC LIMIT SWITCH | OPTIONAL |
| LIMIT SWITCH ADAPTOR | OPTIONAL |
| PRESSURE CONTROL SYSTEM | OPTIONAL |
| OPENING SPEED | 12,8 mm/sec (0.504'') |
| SPECIAL VOLTAGE | OPTIONAL |
| SPEED CONTROL SYSTEM | OPTIONAL |
| QUALITY CHECK | OPTIONAL |
| BARCODE | OPTIONAL |
| WEBCAM | OPTIONAL |
| CONNECTION FROM ES4 TO PC | OPTIONAL |
| AUTOMATIC LUBRICATING SYSTEM | OPTIONAL |
| DISPENSER + QUICK CHANGE | OPTIONAL |
| MARKING DIES 15 CHAR. | OPTIONAL |
| SPECIAL DIES | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
| MULTISTEP | OPTIONAL |
| ELECTRIC PEDAL | OPTIONAL |
| CRIMPING SPEED | OPTIONAL |
