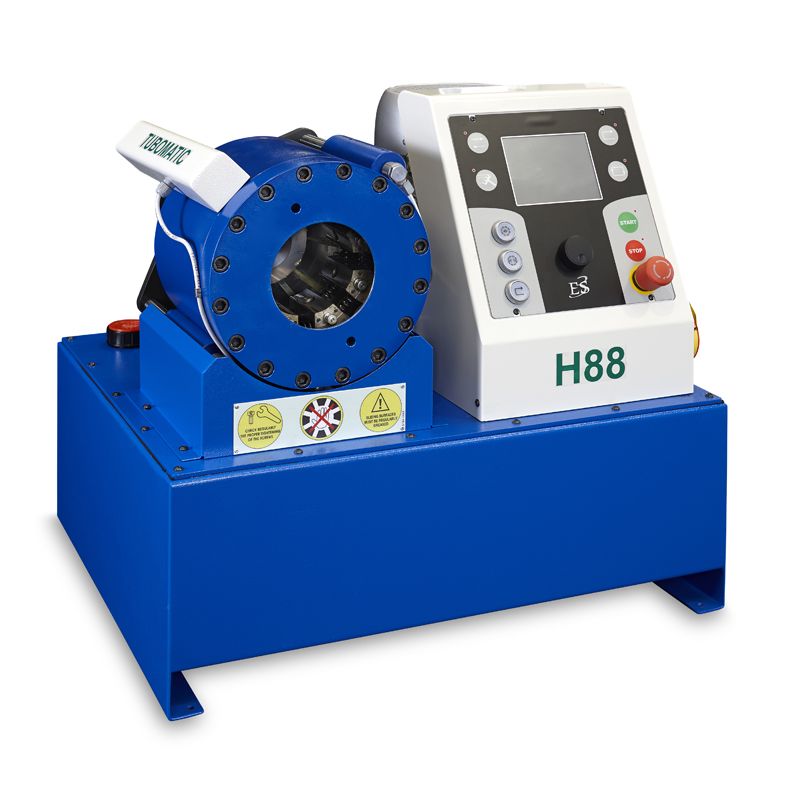

TUBOMATIC H88 ES / TUBH88ES
Tubomatic H88 ES is ideal for crimping hydraulic hoses up to 1" six spirals and up to 1"1/2 four spirals.
Main Features
- ideal for crimping any type of fitting;
- ES3 Siemens PLC control with 5,7'' color touch-screen display;
- back limit switch.
Product specifications could be modified without prior notice.
| CRIMPING FORCE | 135 TONS(150 US TONS) |
| 4 SP 2 PIECES WITH SPECIAL DIES | 1''1/2 |
| 4 SH 2 PIECES ACCORDING TO THE FITTING | 1''1/4 |
| MAX Diam. | 88 mm* (3.464'') |
| CRIMPING/HOUR | 680 |
| DIE OPENING | Ø + 48 mm (Ø + 1.890'') |
| 90 FITTINGS | 1''1/4 |
| STANDARD VOLTAGE | 375V-420V-50HZ-3PH |
| MOTOR POWER | 4 Kw (5 Hp) |
| DIMENSIONS L x W x H | 700x615x640 mm (27.559''x24.212''x25.197'') |
| WEIGHT WITHOUT OIL | 175 KG (386 Lbs) |
| OIL | 70 lt. |
| ELECTRONIC CONTROL WITH TOUCH SCREEN | incl. |
| BACK LIMIT SWITCH | incl. |
| SPEED CONTROL SYSTEM | OPTIONAL |
| PRESSURE KIT | OPTIONAL |
| DATA TRANSFER KIT | OPTIONAL |
| QUALITY CHECK | OPTIONAL |
| MULTISTEP | OPTIONAL |
| DISPENSER + QUICK CHANGE | OPTIONAL |
| BASE | OPTIONAL |
| ELECTRIC PEDAL | OPTIONAL |
| MARKING DIES | OPTIONAL |
| SPECIAL DIES | OPTIONAL |
| MIRROR | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
