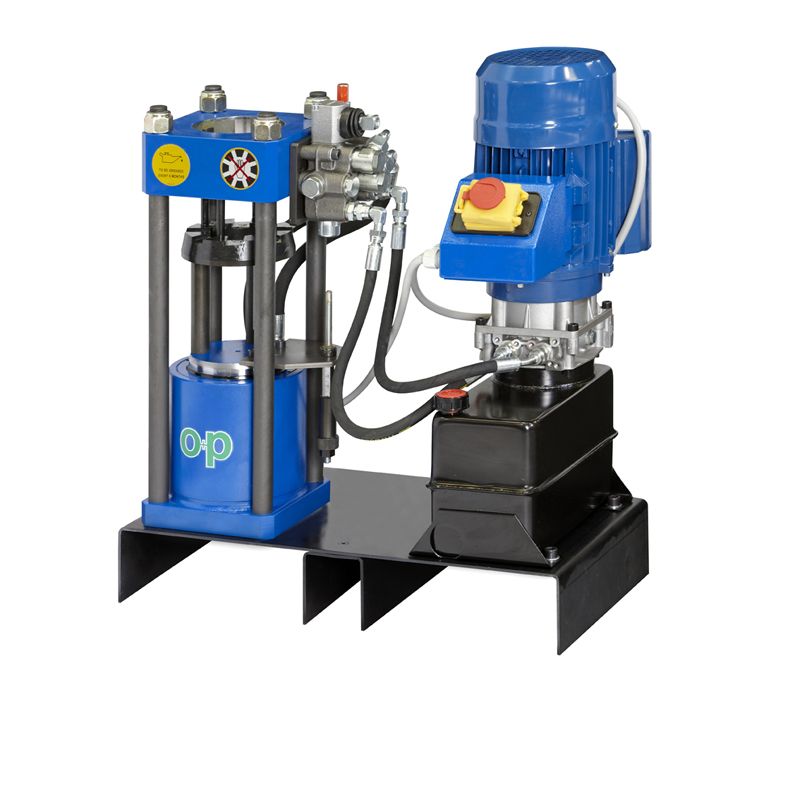

TUBOMATIC 040 EL / TUB265SEL

Tubomatic 040 EL is ideal for crimping hydraulic hoses up to 3/4" six spirals and 1'' four spirals.

Main Features

  • vertical working position;
  • power pack included.

Product specifications could be modified without prior notice.

TUBOMATIC 040 EL


CRIMPING FORCE 108 TON (120 US TONS)
6 SPIRALS 2 PIECES 3/4
4 SPIRALS 1
2 BRAIDS 1
MAXIMUM CRIMPING Diam. 58 mm* (2.284'')
CRIMPING / HOUR 451
DIE OPENING Ø + 37 mm (Ø + 1.457'')
STANDARD VOLTAGE 230V 50HZ 1PH
MOTOR POWER 1.8 Kw (2.4 Hp)
DIMENSIONS L x W x H 570x370x660 mm (22.440''x14.566''x25984'')
WEIGHT WITHOUT OIL 102 KG (225 Lbs)
OIL incl.
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
