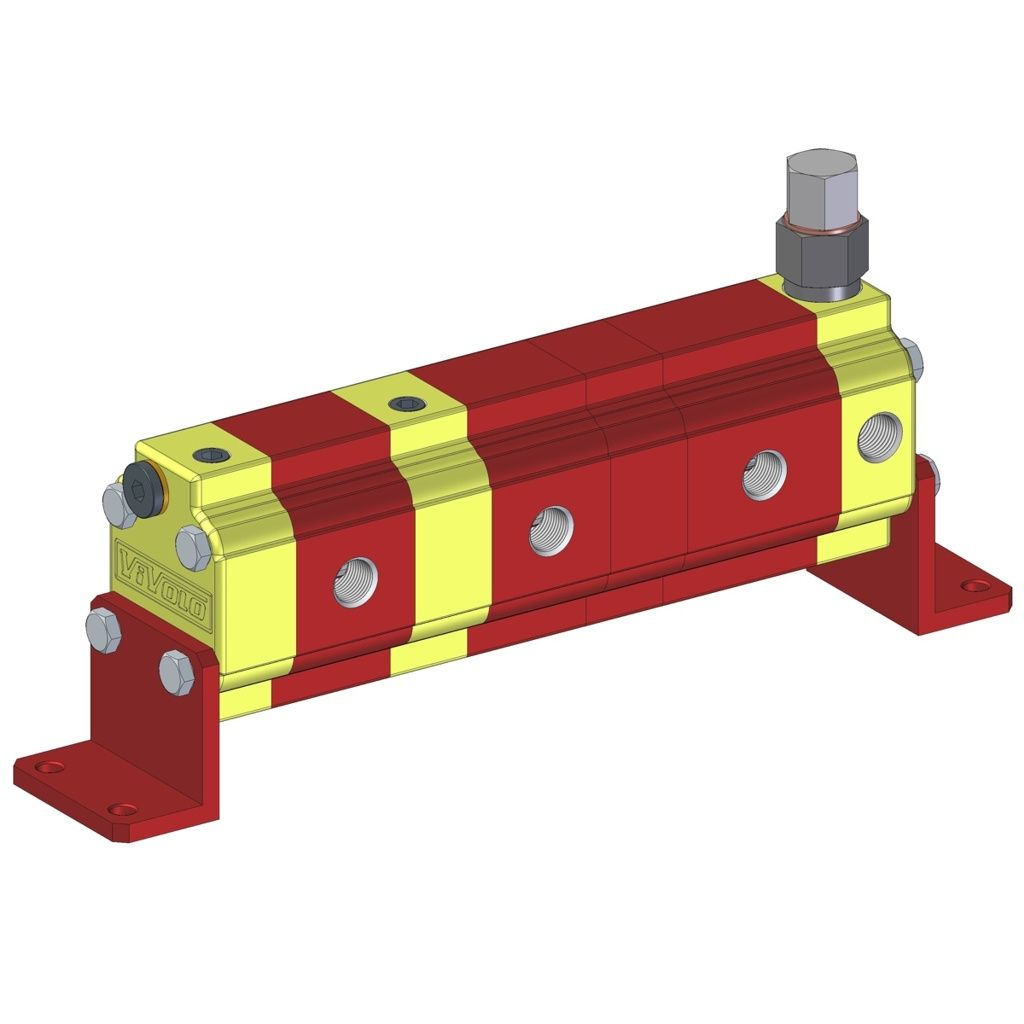

Flow divider in aluminium, and with external gears, with single relief valve and motor. It is a component of group 0, and it is high-precision like all products in this category.

Features and functions

This model is designed to divide the flow, and is the motorized version of the RV-S divider.
The motor has the same function that it performs in the divider RV-G: it is connected to the flow divider elements and is very useful when the incoming and/or outgoing pressure of the divider is below the minimum pressure required to start, because, by fueling the motor, the divider can still be operated.

Technical Data

• Displacements from 0.16 cm3/rev to 2.28 cm3/rev
• Maximum pressures up to 210 bar
• Rotation speeds up to 7500 rpm

Options available

• Viton
