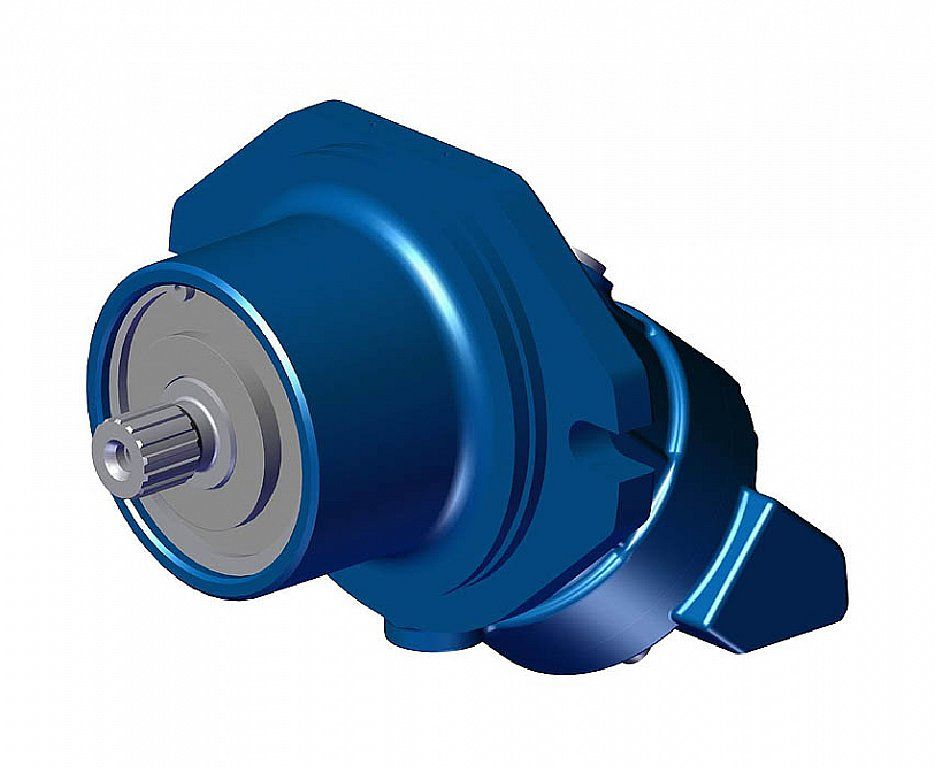

SH11CR Series
SH11CR series are a family of fixed displacement motors, bent axis piston designed for operation in open and closed circuit. SH11CR series motors have a plug-in flange to be mounted on gear boxes, to fit on track drives and winch applications. A range of flangeable valves, for open and closed circuit is also available.
|
Model SH11CR |
Displacement cc |
Pressure cont. bar |
Pressure max. bar |
Speed max. rpm |
Torque cont. Nm |
Flow max. lpm |
Power max. Kw |
Weight Kg |
|---|---|---|---|---|---|---|---|---|
| 055 | 56,35 | 430 | 480 | 5000 | 386 | 282 | 202 | 19 |
| 063 | 63,26 | 430 | 480 | 5000 | 433 | 316 | 226 | 19 |
| 075 | 77,82 | 430 | 480 | 4500 | 533 | 350 | 251 | 23.7 |
| 090 | 86,23 | 430 | 480 | 4500 | 590 | 388 | 278 | 23.7 |
| 108 | 108,4 | 430 | 480 | 4000 | 742 | 433 | 310 | 35 |
| 125 | 124,8 | 430 | 480 | 4000 | 855 | 500 | 358 | 35 |
| 160 | 163,9 | 430 | 480 | 3600 | 1122 | 590 | 423 | 48 |
| 180 | 178,1 | 430 | 480 | 3600 | 1219 | 641 | 459 | 48 |
