H1C Series

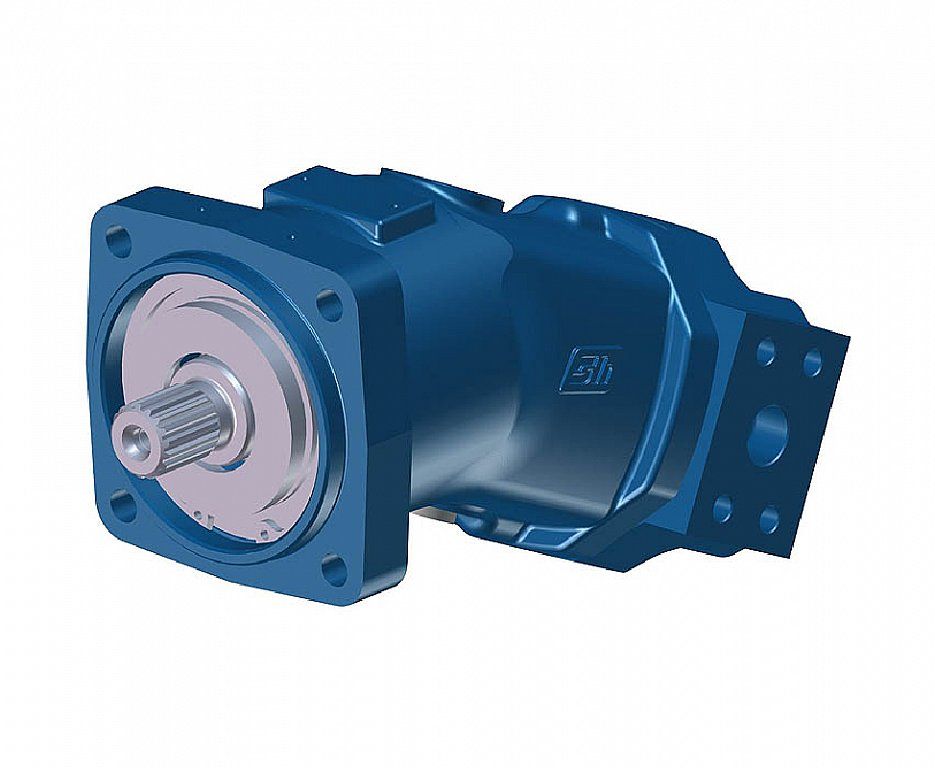

The H1C series motors are bent axis, axial piston hydraulic units with fixed displacement for open and closed circuit. A range of flangeable valves is also available. H1C series motors are available in metric and SAE mounting configuration.
|
Model H1C |
Displacement cc |
Pressure cont. bar |
Pressure max. bar |
Speed max. rpm |
Torque cont. Nm |
Flow max. lpm |
Power max. Kw |
Weight Kg |
|---|---|---|---|---|---|---|---|---|
| 006 | 6,1 | 350 | 450 | 6000 | 33.8 | 36.4 | 21.2 | 5.5 |
| 012 | 10,9 | 350 | 450 | 5590 | 60.5 | 61 | 35.5 | 5.5 |
| 020 | 19,6 | 350 | 450 | 5590 | 109 | 109 | 64 | 13 |
| 030 | 30,0 | 350 | 450 | 4500 | 167 | 135 | 79 | 13 |
| 040 | 40,1 | 350 | 450 | 4350 | 223 | 175 | 102 | 22 |
| 075 | 75.3 | 350 | 450 | 3450 | 420 | 259 | 151 | 30 |
| 090 | 87.0 | 350 | 450 | 3450 | 485 | 300 | 175 | 45 |
| 108 | 107.5 | 350 | 450 | 3000 | 599 | 322 | 188 | 45 |
| 160 | 160.8 | 350 | 450 | 2700 | 896 | 434 | 253 | 61 |
| 226 | 225.1 | 350 | 450 | 2400 | 1254 | 540 | 315 | 86 |
