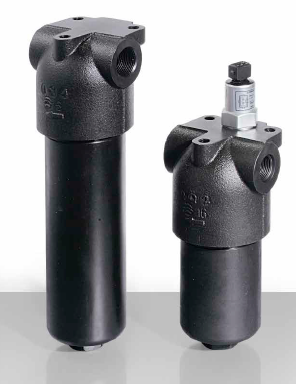

XTT
Sofima
31,5 MPa (315 bar)
Port size: M22 x 1,5 - 1/2” BSP - 3/4”
BSP Flow rate: up to 95 l/min
Technical data
Max. working pressure: 31,5 MPa (315 bar)
Max. testing pressure: 63 MPa (630 bar)
Min. bursting pressure: 110 MPa (1100 bar)
Filter element collapse pressure: 2,1 MPa (21 bar)
Working temperature: -25°C ÷ +110°C
Material
Head: cast iron (phosphatized)
Bowl: steel (phosphatized)
Seals: standard NBR
Compatibility (ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4).
For fluids different than the above mentioned, please contact our Sales Department.
All tests performed according to the following standards:
- ISO 2941: Element collapse resistance test
- ISO 2942: Production integrity test
- ISO 2943: Fluids compatibility
- ISO 3723: End load test method
- ISO 3724: Flow fatigue resistance method
- ISO 3968: Pressure drop versus flow rate
- ISO 16889: Multipass test.
Filter Code
XTT301 FS 1 D M3 00 XX - XTT301 FS 1 D M3 X6 XX - XTT301 FD 1 C M3 00 XX - XTT301 FD 1 C M3 5E XX - XTT301 FD 1 C B3 5E XX - XTT301 FV 1 C M3 00 XX - XTT306 FS 1 D M3 00 XX - XTT306 FS 1 D M3 X6 XX - XTT306 FS 1 C M3 00 XX - XTT302 FS 1 D M3 00 XX - XTT302 FS 1 D M3 X6 XX
XTT301 FS 1 D M3 00 XX - XTT301 FS 1 D M3 X6 XX - XTT301 FD 1 C M3 00 XX - XTT301 FD 1 C M3 5E XX - XTT301 FD 1 C B3 5E XX - XTT301 FV 1 C M3 00 XX - XTT306 FS 1 D M3 00 XX - XTT306 FS 1 D M3 X6 XX - XTT306 FS 1 C M3 00 XX - XTT302 FS 1 D M3 00 XX - XTT302 FS 1 D M3 X6 XX
