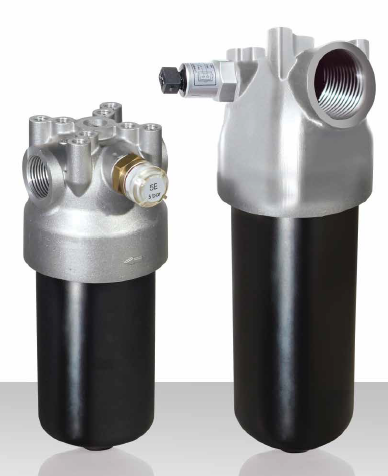

MDS
Sofima

5 MPa (50 bar)
Port sizes: 3/4” - 1” - 1”1/4 - 1”1/2
Flow rates: 50 ÷ 420 l/min
Technical data
Working pressure: 5 MPa (50 bar)
Fatigue test: 0 ÷ 5 MPa (50 bar) / 1.000.000 cycles
Elements collapse differential pressure: 1 MPa (10 bar)
Working temperature: -25 ÷ +110°C
Materials
Head: aluminium alloy
Bowl: steel
Seals: standard NBR (on request FKM)
Compatibility (ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4).
For fluids different than the above mentioned, please contact our Sales Department.
All tests performed according to the following standards:

  • ISO 2941: Element collapse resistance test
  • ISO 2942: Production integrity test
  • ISO 2943: Fluids compatibility
  • ISO 3723: End load test method
  • ISO 3724: Flow fatigue resistance method
  • ISO 3968: Pressure drop versus fl ow rate
  • ISO 16889: Multipass test.
Filter Code
MDS 205 - MDS 210 - MDS 220 - MDS 310
