CGS - Load Return

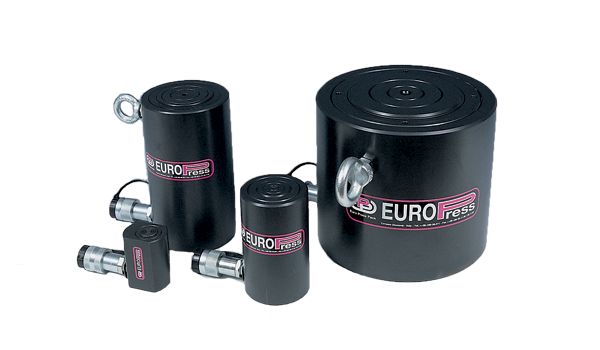

HIGH TONNAGE CYLINDERS, LOAD RETURN
CGS cylinders also have concentric grooves machined into the end of the rod to improve load grip, models above 30 tonne have lifting eyelets for ease of transport. From 50 tonnes upwards, the cylinders are plunging type and have device which prevents any over-stroke. The rod has a coloured zone which becomes visible 10 mm before the end of the piston stroke. All models can operate with off-centred load up to 8% of their nominal capacity.
- Force 5 - 500 t
- Stroke 15 - 300 mm
- Max working pressure 700 bar
Model
CGS5N15 CGS5N50 CGS5N80 CGS10N25 CGS10N50 CGS20N25 CGS20N100 CGS30N25 CGS30N50 CGS30N100 CGS50P50 CGS50P100 CGS50P150 CGS100P50 CGS100P100 CGS100P150 CGS150P25 CGS150P50 CGS150P100 CGS150P150 CGS150P200 CGS150P250 CGS200P25 CGS200P50 CGS200P100 CGS200P150 CGS200P200 CGS200P250 CGS200P300 CGS250P25 CGS250P50 CGS250P100 CGS250P150 CGS250P200 CGS250P250 CGS250P300 CGS300P25 CGS300P50 CGS300P100 CGS300P150 CGS300P200 CGS300P250 CGS300P300 CGS350P25 CGS350P50 CGS350P100 CGS350P150 CGS350P200 CGS350P250 CGS350P300 CGS400P25 CGS400P50 CGS400P100 CGS400P150 CGS400P200 CGS400P250 CGS400P300 CGS500P25 CGS500P50 CGS500P100 CGS500P150 CGS500P200 CGS500P250 CGS500P300
>
