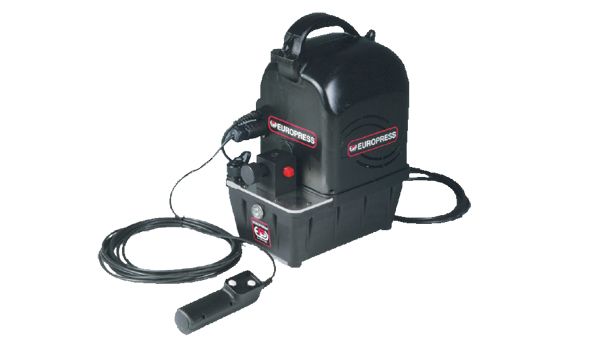

700 BAR Two-stage Hydraulic Power Packs particularly light and compact with excellent technical characteristics. A large range of manual and electric controlled valves, allowes them to be used with single and double acting cylinders. All models are equipped with either: • Single phase electric motor 230V - 50Hz and 0,75 kW, 2800 rpm • Plastic reservoir. • Two-stage piston pump. • Manual or electric 3 or 4-ways valves with or without pilot check. • Relief valve. • Electric cable 5 m. • Remote control 3 m. (for electric valve) • Plastic frame with carrying handle (excluding version H) • Protective cage (only version H) dim. AxBxH 400x250x420e. • Oil level gauge

1000-1500 BAR Same characteristics of the 700 bar series a part for: • Manual or electric 3 ways - 2 positions valve. • Pressure regulation valve. • Manometer G16 The following can be requested on demand • Different voltage motor • Air operated Motor • Different capacity Reservoir

• Reservoir Capacity 2,6 l
• Delivery at 700 bar 0,4 l/min
• Power Rating0,75 - 1,1 kW
• Max pressure 700 bar
