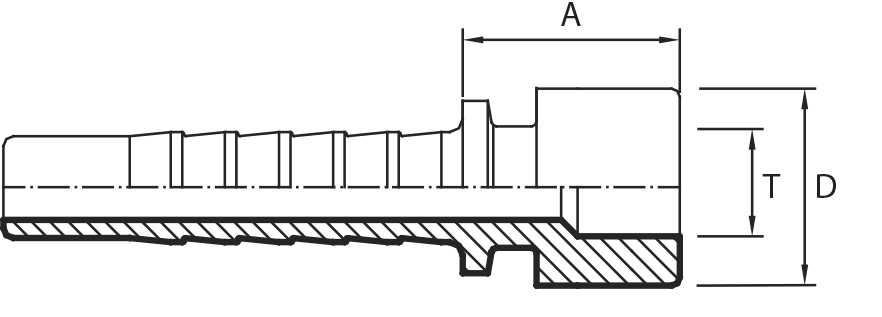

| CODE | DN | INCHES | DIAMETER | D | L |
|---|---|---|---|---|---|
| CS03 | 5 | 3/16 " | 3 | 14.5 | 12 |
| CS04 | 6 | 1/4" | 4 | 12.5 | 12 |
| CS04T8 | 6 | 1/4" | 4 | 12.5 | 12 |
| CS05 | 8 | 5/16" | 5 | 13.5 | 14 |
| CS06 | 10 | 3/8" | 5 | 14.5 | 16 |
| CS06T10 | 10 | 3/8" | 6 | 14.5 | 16 |
| CS06T12 | 10 | 3/8" | 6 | 14.5 | 16 |
| CS08 | 12 | 1/2" | 8 | 16 | 20 |
| CS08T14 | 12 | 1/2" | 8 | 16 | 20 |
| CS08T15 | 12 | 1/2" | 8 | 16 | 20 |
| CS08T16 | 12 | 1/2" | 8 | 16 | 20 |
| CS10 | 16 | 5/8" | 10 | 18 | 24 |
| CS12 | 20 | 3/4" | 12 | 15.5 | 26 |
| CS16 | 25 | 1" | 16 | 22 | 32 |
| CS20 | 32 | 1.1/4" | 20 | 21.5 | 40 |
| CS24 | 40 | 1.1/2" | 24 | 21.5 | 46 |
| CS32 | 50 | 2" | 32 | 23 | 60 |
* Приведенные в таблицах цифры и технические данные являются лишь приблизительными.
