BMW 315 Up to 649 rpm

Brand : Hydraglobe

BMW 315

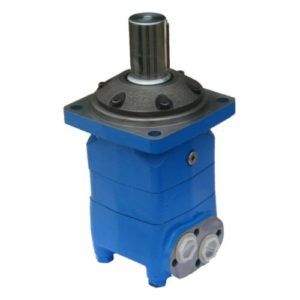

Hydraglobe BMV 315 is a hydraulic motor from the BMV series with rotation speed up to 649 rpm.

BMV hydraulic motors are gear hydraulic motors with an internal toothed roller clutch (gerotor type). The disk distributive valve ensures the accuracy of filling the working chambers. The BMV series includes five models with chamber ranges of 315, 400, 500, 630 and 800 cm3 / rev.

Features of Hydraglobe hydraulic motors of the BMV series

  • Low starting pressure;
  • Improved shaft seal;
  • overload resistance;
  • Disc control valve with hydrostatic load compensation;
  • Ability to withstand high radial and axial loads.
Download Bmw 315 catalogue

Get your quote for Hydraglobe BMW 315

Motor size315
Geometric displacement, cm³333
Max. speed, rpmDenomination – 335, post. - 446, change - 649
Max. torque, NmDenomination – 730 post. – 925, change. - 1100 peak. – 1349
Max. output, kWDenomination - 25.6, post. - 43, change. – 52
Max. pressure drop, MPaDenomination - 16, post. - 20, change. - 24, peak - 28
Max. oil consumption, l/minFast. – 110, altern. – 150, variable – 225
Maximum inlet pressure, MPaDenomination - 21, post. - 21, change. - 25, peak - 30
Weight, kg31.8

* The figures and technical data set out in the tables are only intended as approximations.
