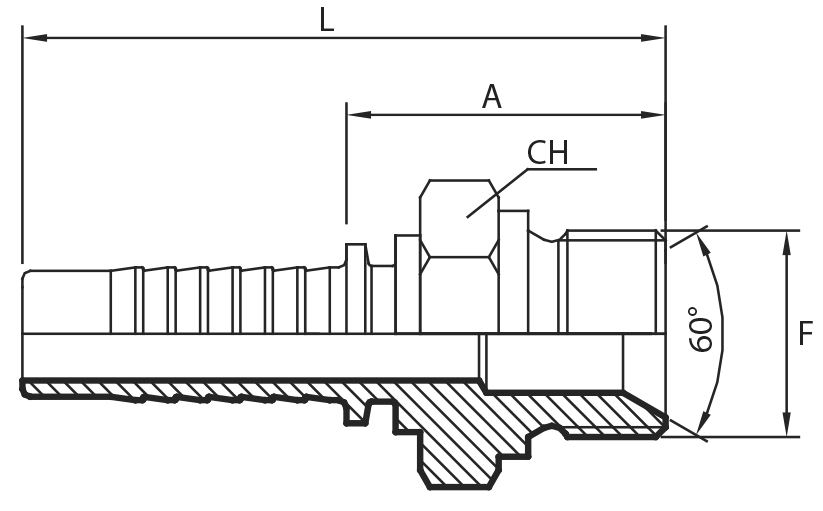

| CODE | DN | INCHES | DIAMETER | D | L |
|---|---|---|---|---|---|
| MG0302 | 5 | 3/16" | 3 | 1/8" | 28 |
| MG0304 | 5 | 3/16" | 3 | 1/4" | 19 |
| MG0402 | 6 | 1/4" | 4 | 1/8" | 28 |
| MG0404 | 6 | 1/4" | 4 | 1/4" | 19 |
| MG0406 | 6 | 1/4" | 4 | 3/8" | 19 |
| MG0408 | 6 | 1/4" | 4 | 1/2" | |
| MG0504 | 8 | 5/16" | 5 | 1/4" | 14 |
| MG0506 | 8 | 5/16" | 5 | 3/8" | 19 |
| MG0508 | 8 | 5/16" | 5 | 1/2" | 19 |
| MG0604 | 10 | 3/8" | 6 | 1/4" | 14 |
| MG0606 | 10 | 3/8" | 6 | 3/8" | 19 |
| MG0608 | 10 | 3/8" | 6 | 1/2" | 19 |
| MG0806 | 12 | 1/2" | 8 | 3/8" | 14 |
| MG0808 | 12 | 1/2" | 8 | 1/2" | 19 |
| MG0810 | 12 | 1/2" | 8 | 5/8" | 14 |
| MG0812 | 12 | 1/2" | 8 | 3/4" | 14 |
| MG1008 | 16 | 5/8" | 10 | 1/2" | 14 |
| MG1010 | 16 | 5/8" | 10 | 5/8" | 14 |
| MG1012 | 16 | 5/8" | 10 | 3/4" | 14 |
| MG1208 | 20 | 3/4" | 12 | 1/2" | 14 |
| MG1210 | 20 | 3/4" | 12 | 5/8" | 14 |
| MG1212 | 20 | 3/4" | 12 | 3/4" | 14 |
| MG1216 | 20 | 3/4" | 12 | 1" | 14 |
| MG1216CH41 | 20 | 3/4" | 12 | 1" | 11 |
| MG1612 | 25 | 1" | 16 | 3/4" | 14 |
| MG1616CH41 | 25 | 1" | 16 | 1" | 11 |
| MG1616 | 25 | 1" | 16 | 1" | 11 |
| MG1620 | 25 | 1" | 16 | 1.1/4" | 11 |
| MG2020 | 32 | 1.1/4" | 20 | 1.1/4" | 11 |
| MG2024 | 32 | 1.1/4" | 20 | 1.1/2" | 11 |
| MG2424 | 40 | 1.1/2" | 24 | 1.1/2" | 11 |
| MG2432 | 40 | 1.1/2" | 24 | 2" | 11 |
| MG3232 | 50 | 2" | 32 | 2" | 11 |
* The figures and technical data set out in the tables are only intended as approximations.
